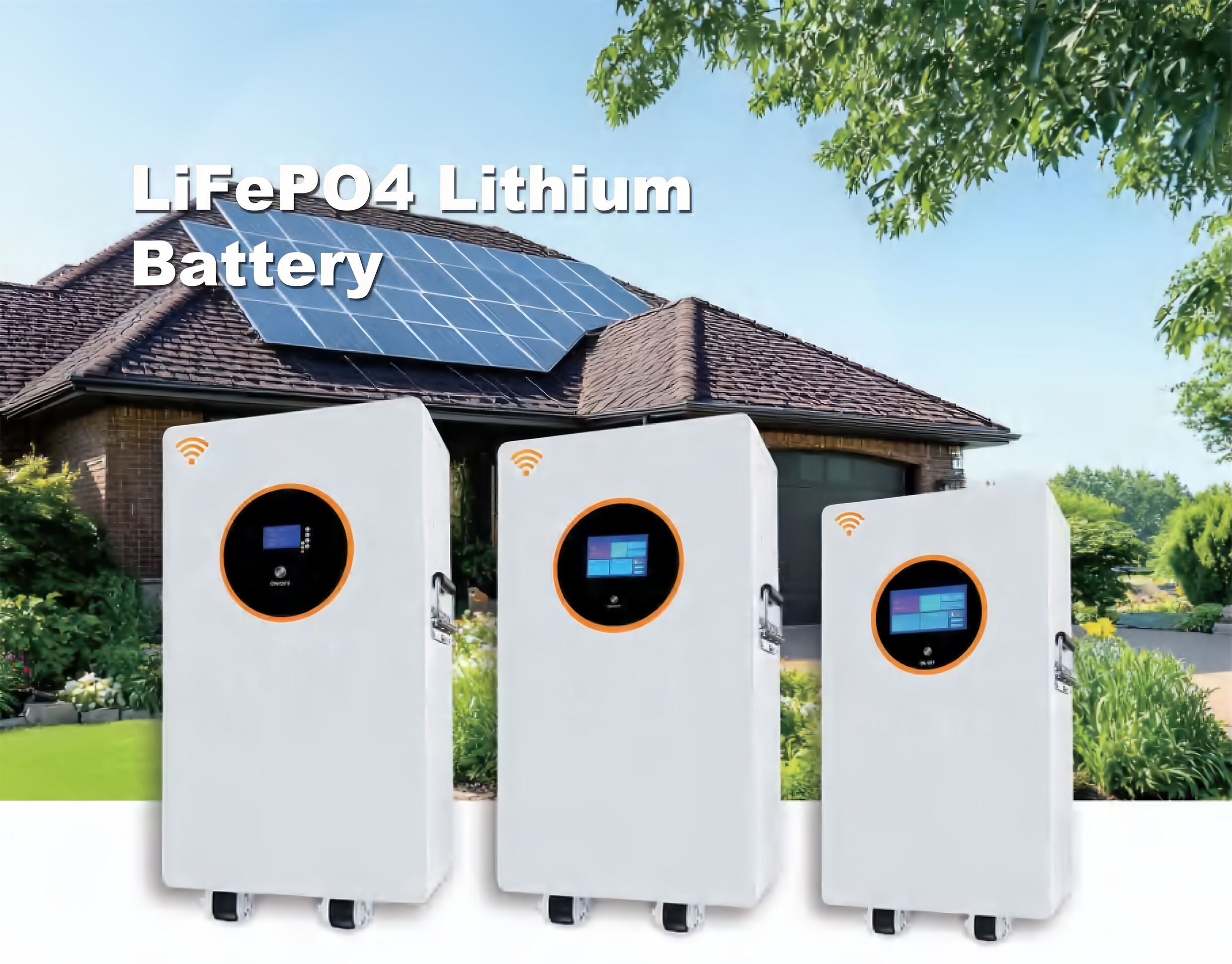

1.The whole module is non-toxic,non-polluting and environmentally friendly.
2. Cathode material is made from LiFePO4 with safety performance and long cycle life.
3. Battery management system (BMS) has protection functions including over-discharge,over-charge,over-current and high/low temperature.
4. The system can automatically manage charge and discharge state and balance current and
voltage of each cell.
5. Flexible configuration, multiple battery modules can be in parallel for expanding capacity
and Power.

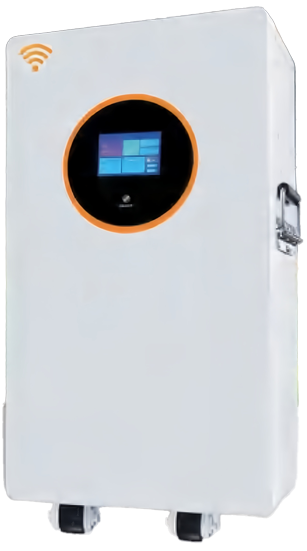

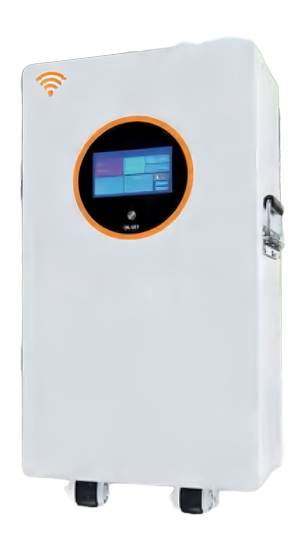

| Model | 51.2V 100AH LCD |
51.2V 200AH LCD |
51.2V 314AH LCD |
51.2V 400AH LCD |
51.2V 628AH LCD |
| BMS | YES | ||||
| Battery Type | Lifepo4 | ||||
| Nominal Voltage | 51.2V | ||||
| Operating Voltage | 40-58.4V | ||||
| Nominal Energy | 5.12KWH | 10.24KWH | 16.07KWH | 20.48KWH | 32.15KWH |
| MAX. Charge Current | 50A | 100A | 140A | 140A | 150A |
| MAX. Discharge Current | 100A | 200A | 314A | 314A | 314A |
| Nominal Capacity | 100AH | 200AH | 314AH | 400AH | 628AH |
| Life Cycling | ≥8000 times | ||||
| Operating Temperature | Charging: 0~45℃ | ||||
| Discharging: -20~55℃ | |||||
| Communication | CAN2.0/RS232/RS485 | ||||
| Cell Dimension(mm) | 160X116X50 | 174X200X55 | 175X200X72 | 174X200X55 | 175X200X72 |
| Battery Dimension(mm) | 650X360X200 | 680X410X260 | 800X410X260 | 950X500X260 | 1000X656X260 |
| NW (±3kg) | 48KG | 115KG | 136KG | 210KG | 225KG |
